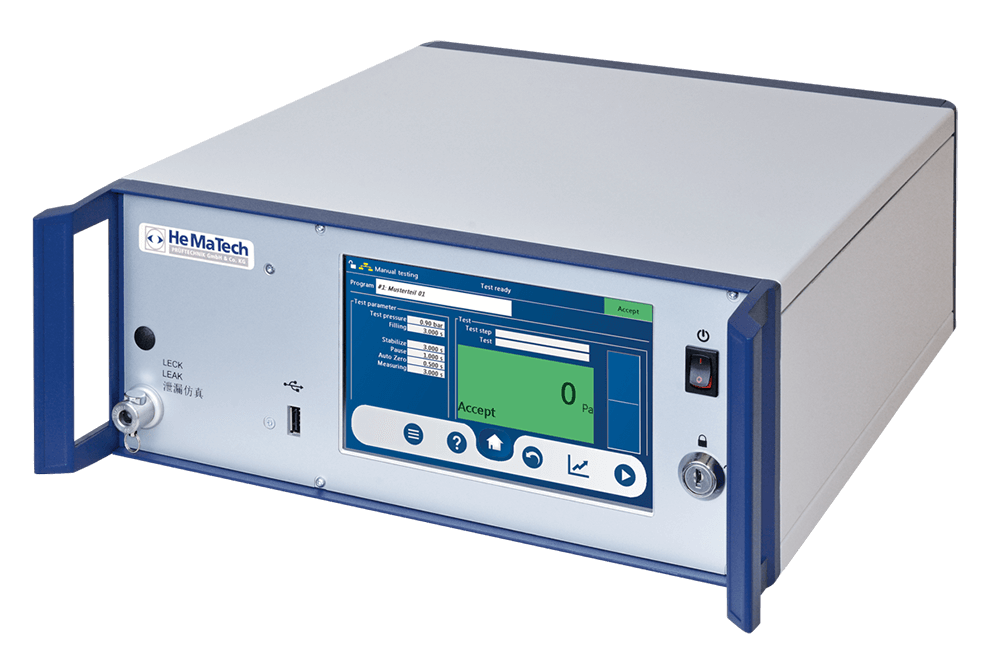

The Leakage Tester 75eco

HeMaTech Prüftechnik is known for robust, durable leak testers with high accuracy. Users worldwide trust on the reliability and service of HeMaTech Prüftechnik. Leak testers are used for leak testing in industrial applications. Whether in the laboratory or in the production of series parts, our testing devices can be used in a wide variety of applications. Customers from a wide range of industries use our leak testers, including the automotive industry, medical technology and electronics manufacturing.





The advantages of the leak tester

The 75eco is the compact partner when a reliable, cost-effective leak tester is required. It has good measuring accuracy and fits many standard applications.

In the leak tester, 10,000 result data sets can be collected for later use. Output is also possible after each measurement, e.g. on a USB stick.

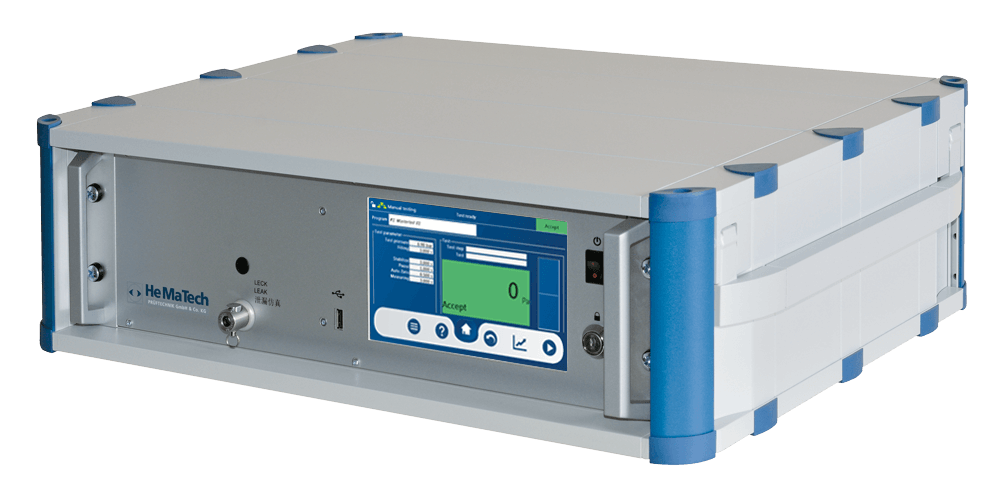

The 75eco offers HeMaTech quality at an affordable price. For special applications or for higher requirements, the 70pro leak tester is available.





The functionality of the tester

The applied leak test method according to the differential pressure method offers many advantages for the user.
The features of the 75eco at a glance:



  • compressed air as a test medium
  • air can quickly penetrate leaks
  • high measuring accuracy
  • reproducible measurements
  • clear measurement results
  • contamination-free testing
  • short cycle times with high accuracy
  • 99 test programmes storable
  • memory for 10,000 result data sets
  • direct output of results to USB stick
  • 99 test programmes storable
  • automatic test sequence
  • can be integrated into system concepts
  • Profibus and Profinet-interfaces available
  • display of measured value and test result
  • variable test pressures and test times for optimum adaptation to the production of different parts
  • easy handling due to intuitive operator guidance
  • service-friendly due to modular design



Differential pressure measurement technology requires pressure-tight devices and/or sealing elements.
HeMaTech can supply you with complete test stations or systems.





The leak calibrator for the leak tester

As supplementary accessories you will find test leaks as well as a leak calibrator in our range. By means of the test leak, you can check the functionality of your leak tester quickly and easily. The leak calibrator comes as a mobile hand-held device and enables you to perform a reliable calibration at regular intervals. These measures, which can be carried out at any time, ensure a constant quality of your measurements.





Calibration

A leak tester is always subject to a certain amount of wear during operation and electronic components can change their behavior over time. Therefore, a leak tester should be calibrated and maintained regularly.



We recommend having a calibration performed every 12 months. This can be done at our workshop or at your site.



The calibration laboratory of HeMaTech Prüftechnik is accredited, i.e. we can also carry out DAkkS calibrations.



More information about calibration can be found here.

Operating principle

The operating principle is based on measuring the pressure change between a sealed test part and a sealed reference volume within a given measuring time, the so called differential pressure testing. The core of the measuring system consists of a differential pressure transducer with automatic zero-point correction.



Air flows out through a leak in a closed volume (test part). This causes a pressure decay. In comparison, a reference chamber is under the initial pressure. The difference between these two chambers can be detected with a differential pressure transmitter. The pressure difference is a measure of the existing leakage and is independent of the test pressure or the prevailing ambient pressure. Inexpensive compressed air is used as the test medium. Due to its low viscosity, the air can quickly penetrate pores, the smallest holes, cracks or other causes of a leak.

The tested parts will not get dirty or contaminated. Rust protection, drying or cleaning is therefore not necessary.

A leak test is only possible with adaptation of the test piece via sealing elements or devices. HeMaTech also offers you a customised concept for this - just ask us.





Operation

The test parameters are entered in a clear programme plan and do not require any special prior knowledge. Direct help is available if required. Data is saved via a write-protection key switch. The parameters can only be read, but not changed, when the unit is secured.

Higher-level control systems can communicate with the 75eco via a standard digital I/O interface or optionally via Profibus or Profinet. With Profibus/Profinet, test data and programme parameters can also be exchanged. The 75eco can thus be easily integrated into automated production processes.

Direct input of test programmes at the test instrument can be done very easily via touch screen or an optionally connected keyboard. The units also have an integrated VNC server. As soon as it is connected to a network, the device can be addressed and operated via its IP address and a VNC client.

The USB interface at the front enables the easy storage of measurement data and test programmes of the leak tester.





Pneumatic System

  • quick and accurate transmitter for differential pressure
  • electronic pressure regulation for filling and test pressure
  • pneumatic controlled shut-off valve to eliminate tmeperatur influence
  • function monitoring
  • optional leak simulation with precision needle valve for the connection of an external leak calibrator or a test leak



Electronic System

  • Windows CE based system
  • Data storage in persistent NAND flash memory
  • Memory for 99 programmes and 10,000 result records
  • 7" touchscreen display
  • virtual keyboard on the touchscreen
  • Remote control via VNC
  • Write protection switch against unauthorised changing of parameters
  • error message in plain text
  • Simple programming
  • Various interfaces for communication with higher-level control systems

Technical data



System:   Windows CE based

Program storage:

persistent memory, NAND-Flash,
10,000 data records
data record contains information on test programme, date, time, measured value, measurement result, error, test parameter
for larger amounts of data use
external USB storage which
can be connected at the front


Measuring sensor:   temperature compensated transmitter for differential pressure
overload protection 40 bar

Data entry:   virtual keyboard on TFT display
external keyboard via USB, VNC viewer

Display:   7.0" TFT VGA Touch Display
800 x 480 px

Measuring range:   0 ... 3,000 Pa

Testing volume:   up to 1,000 ml recommended

Resolution:   display: 1 Pa (0.0001 Pa adjustable)

Results:   Pa; mm WC; mbar; psi; mm HG, ml/min

Test programs:   99

Filling and test Pressure:   electronic pressure control
0.20…6.0 bar/g

Test parameters:   Filling pressure … bar
Test pressure … bar
Pressure tolerance 1.0 … 10.0 % FS
Filling time 0.1 … 999.9 s
Stabilization time 0.1 … 999.9 s
Measuring time 0.1 … 999.9 s
Rework limit …
Reject limit …
Consecutive rejects limit

Write protection:   Key switch

Status indicator:   Accept
Rework
Reject
Fault

Interfaces:

1 x parallel interface

(machine control,
up to 96 digital I/Os)
control inputs: 24 VDC, 500 mA
control outputs: 24 VDC, 500 mA
short-circuit proof

    1 x serial interface RS 232 for transfer of parameters and test results

    1x USB 2.0 for transfer of parameters and test results, keyboard, mouse

    1x RJ45 for VNC
optional: Profibus, Profinet

Housing:   compact metal case

Dimensions:   141 x 357 x 420 mm (H x W x D)

Power supply:   110 - 240 V, 50 ... 60 Hz

Power consumption:   Approx. 100 VA

Air supply:   1.5 bar > test pressure,
10 bar max
filtered, dry and oil-free

Pneumatic ports:   air supply G1/4“,
test medium G1/4“ (optional),
test port G1/8“,
reference port G1/8“
vent through air silencer G1/4“

Weight:   Approx. 8 kg

Standard accessories:   leak tester, power cord 2.5 m
key for write protection switch,
USB stick containing manual and
documentation

Order-No.:   Leaktester 3925-0075

Specifications and technical data are subject to change without notice.
