Testing lines by HeMaTech
HeMaTech is your competent partner and specialist for industrial leak testing machines and lines. We as manufacturer of leak testers using the differential pressure method could offer a great variety of solutions tailored to your requirements.
Thanks to our longstanding experience based on a large number of implemented projects you will get professional and customised consulting. Together we will develop and implement the solution that fits best to your requirements.
We could as well design complex special systems and support you during installation at your production line. So nothing will keep you from automation in leak testing.
Examples of leak testing facilities

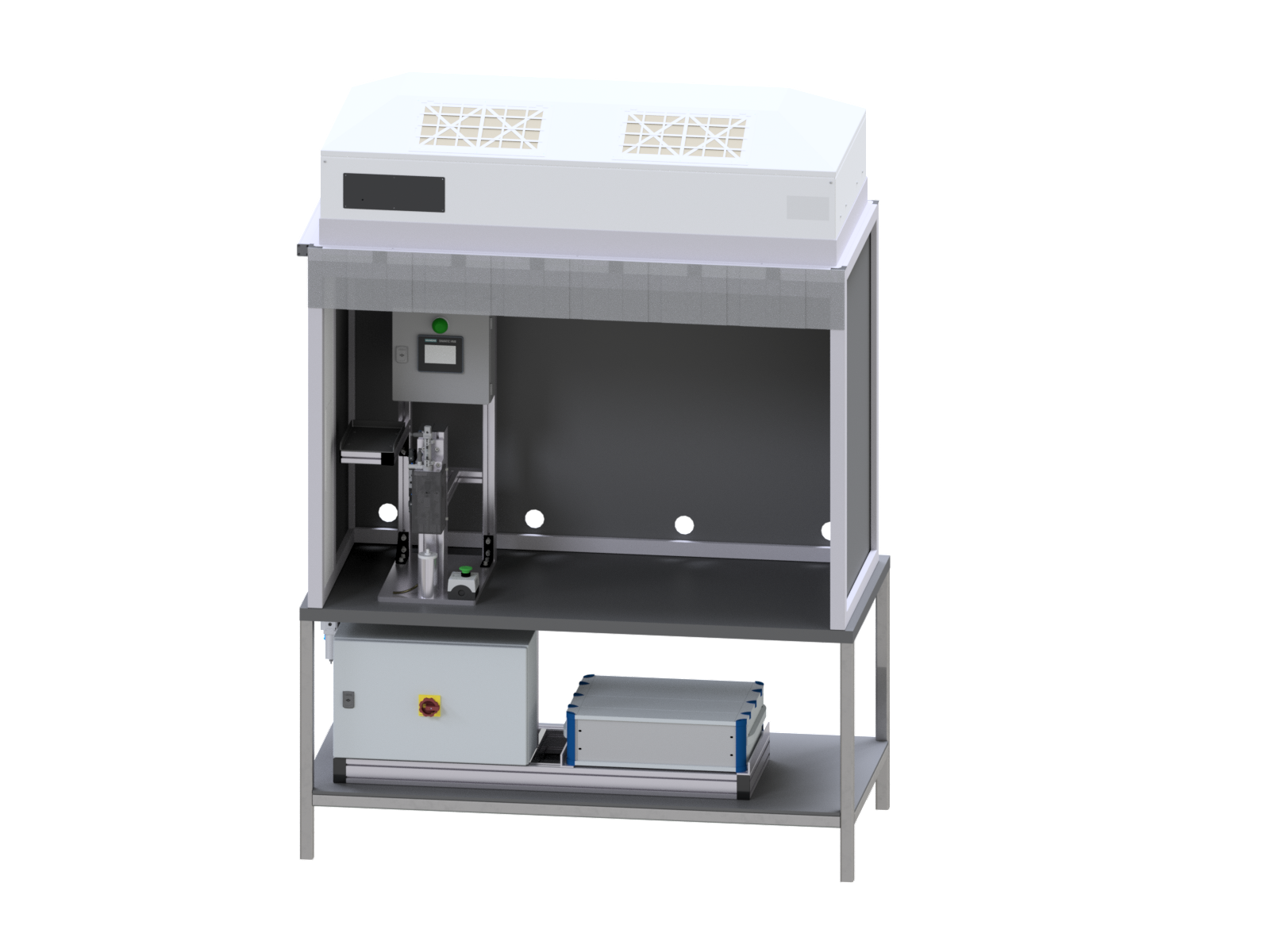

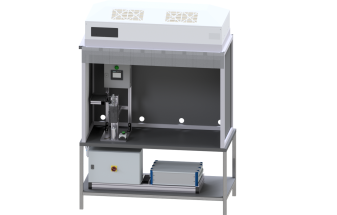

Flow test device for valves
Type:
Semi-automatic test device in the clean room
Task:
- Determine valve closing pressure using flow curve
- Flow testing with HeMaTech special device
- Recording of all measured values
- Communication with Q-DAS
Formats:
1 format
Cycle time:
approx. 40 seconds

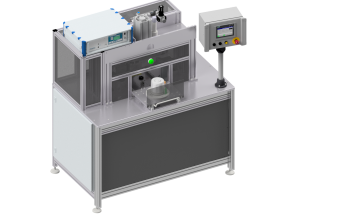

Leak testing station for die-cast housings
Type:
Special machine with manual loading and unloading
Movable component holder (drawer)
Multiple pneumatic sealing movements
Task:
- Measurement of surface temperature
- Leak test of the die-cast housing
- Marking of OK parts with pneumatic punch
Formats:
3 different formats
Cycle time:
37 seconds

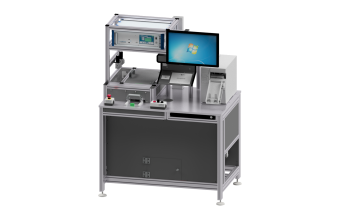

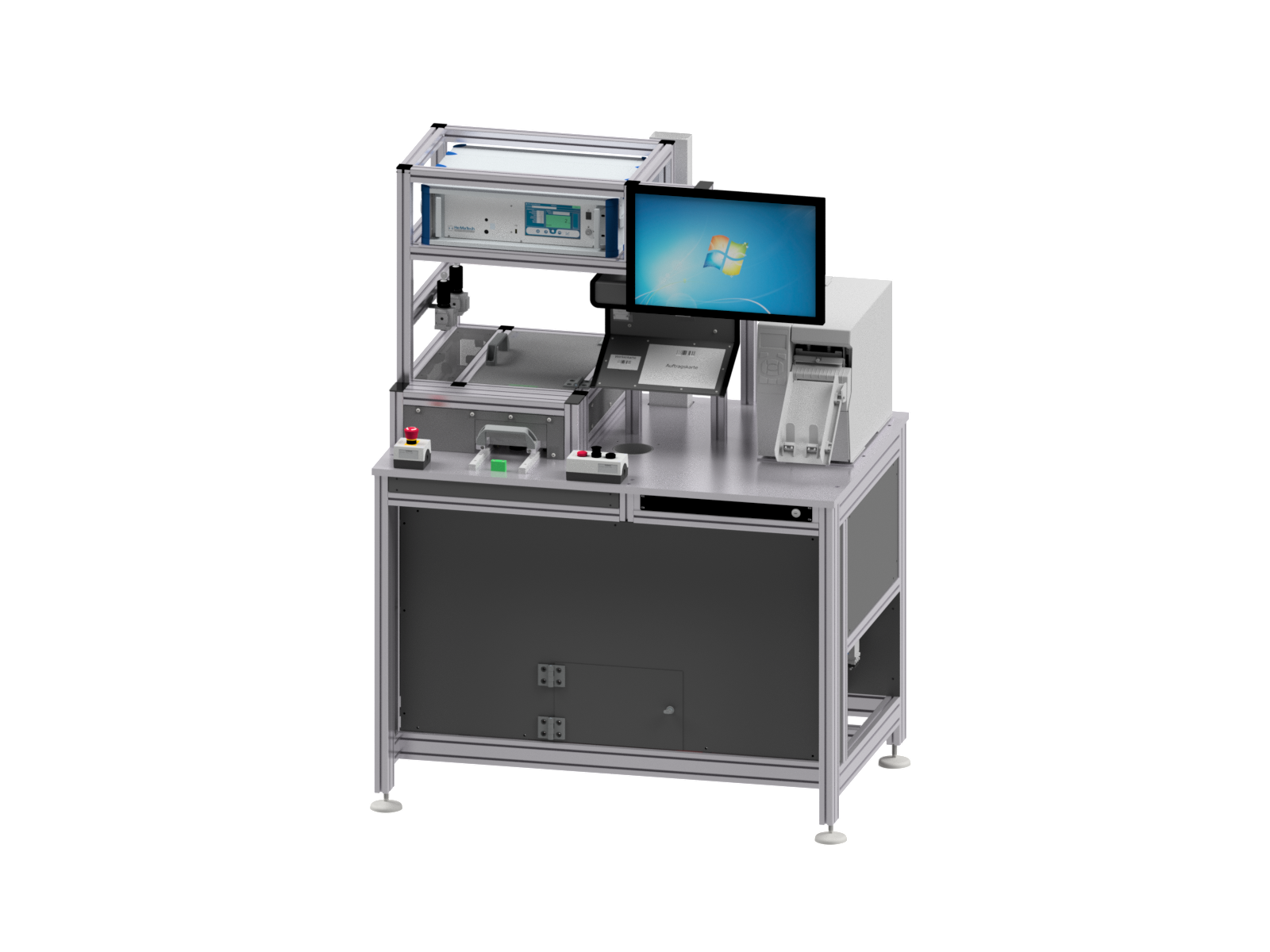

Leak testing station for sensor housings
Type:
Special machine with manual loading and unloading
Movable component holder (drawer)
Multiple pneumatic sealing movements
Task:
- Reading the worker card and the order card (barcode)
- Leak test of the sensor housing
- Automatic printing of a label if leak test is OK
- Sensor-monitored NOK parts shaft
- Lockable container for NOK components
Formats:
1 format
Cycle time:
24 seconds
Leak and flow test station for activated carbon filters
Type:
Test bench with manual loading and unloading
Component holders on removable plates
4-way test station
Task:
- 4-fold flow and leak test as well as back pressure control
- Conversion of measurement results to standard conditions based on the measurement of environmental parameters
- Marking of OK parts using a needle embosser
- Highly detailed visualization of the operator guidance
Formats:
2 different formats, convertible via test plates
Cycle time:
30 seconds

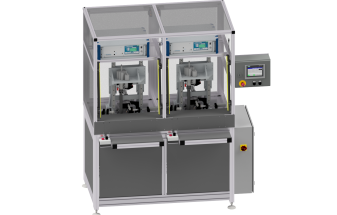

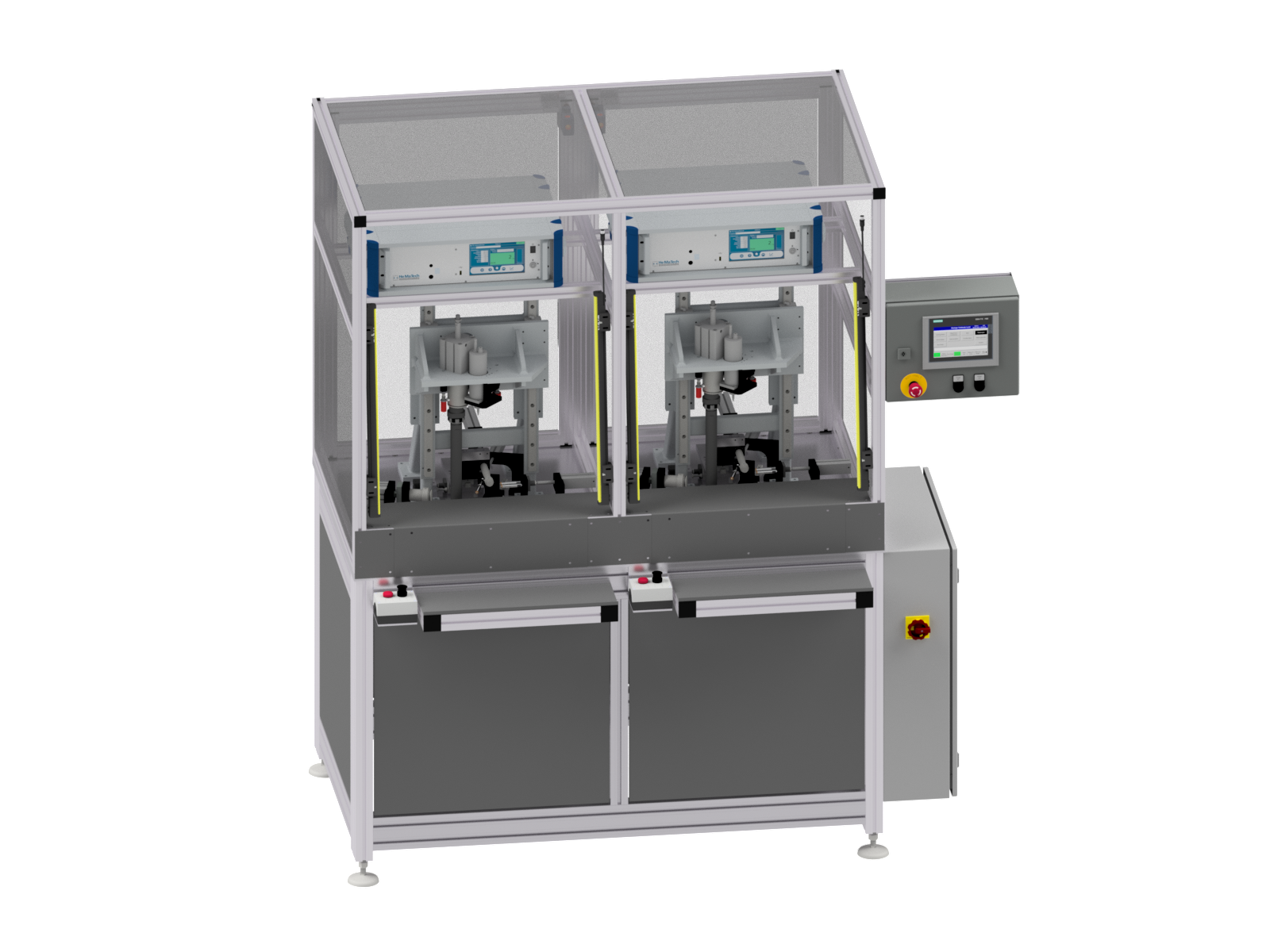

Test system for leak testing of housing covers
Type:
Double testing machine with 2 test fixtures and manual loading, 2 leak testers HeMaTech
Task:
Automatically check aluminum housing covers for leaks and stamp OK parts
Formats:
3 different formats without changeover
Cycle time:
30 seconds per device

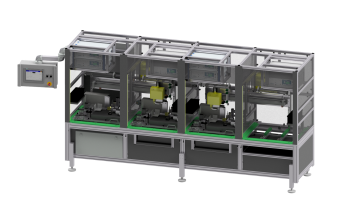

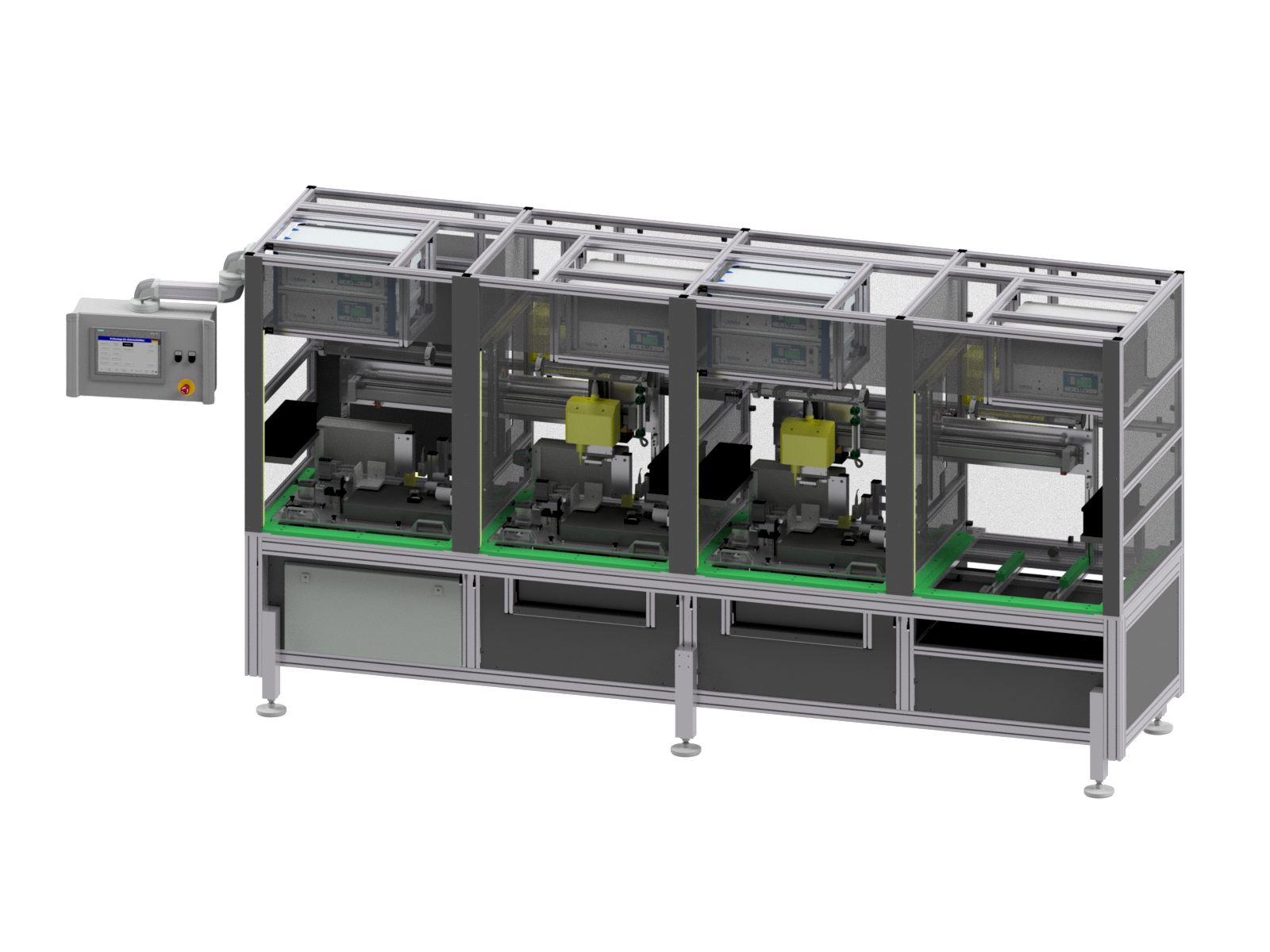

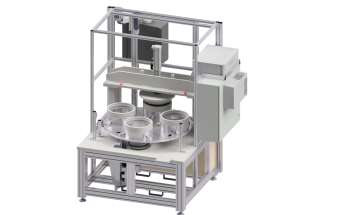

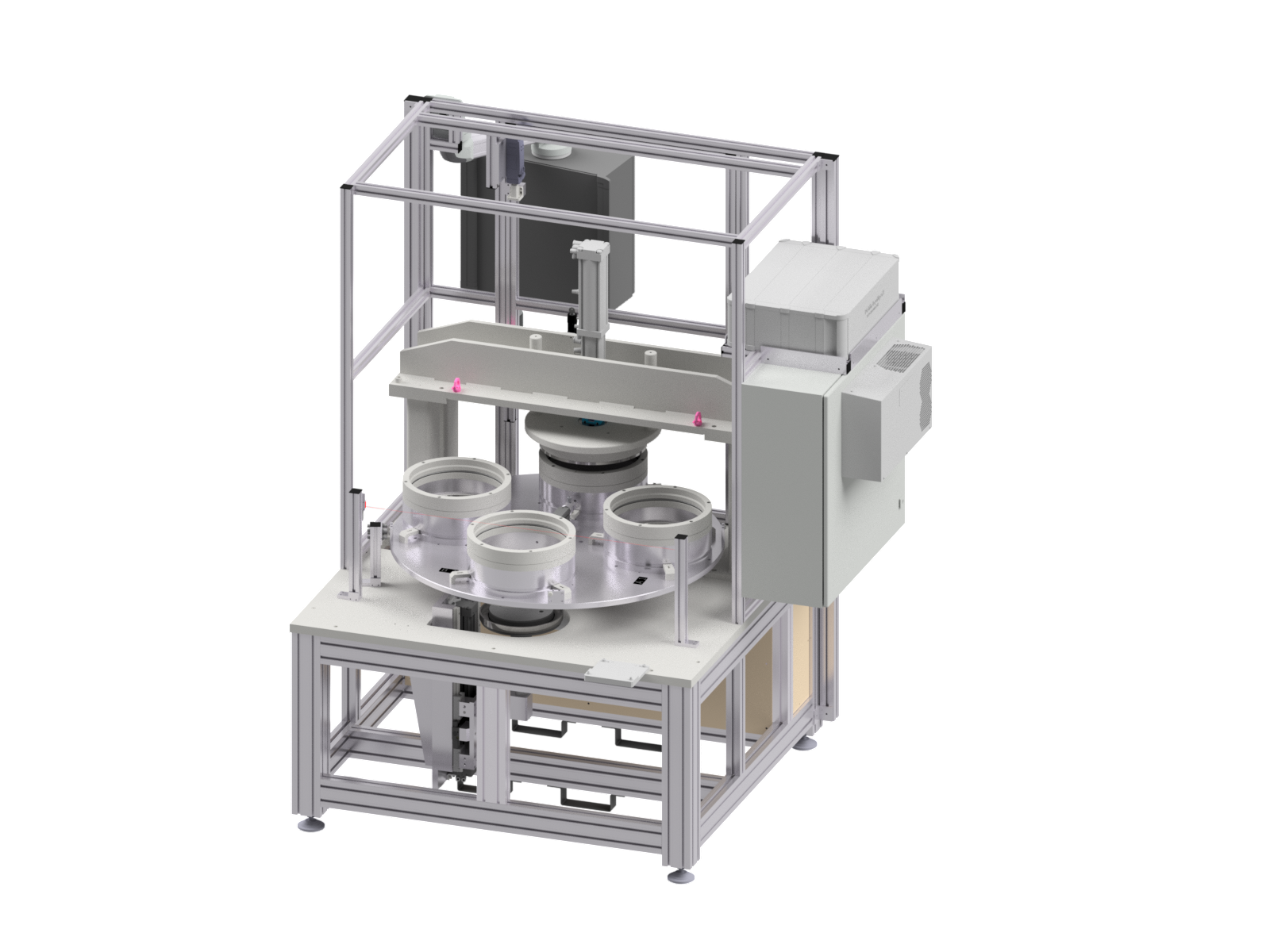

Leak testing system for stators
Type:
Rotary indexing machine with 4 indexing positions and robot loading, integrated in robot cell
Task:
- automatic leak test
- highly complex component contour
- multi-part component holder
Formats:
2 different formats, automatic changeover
Cycle time:
120 seconds

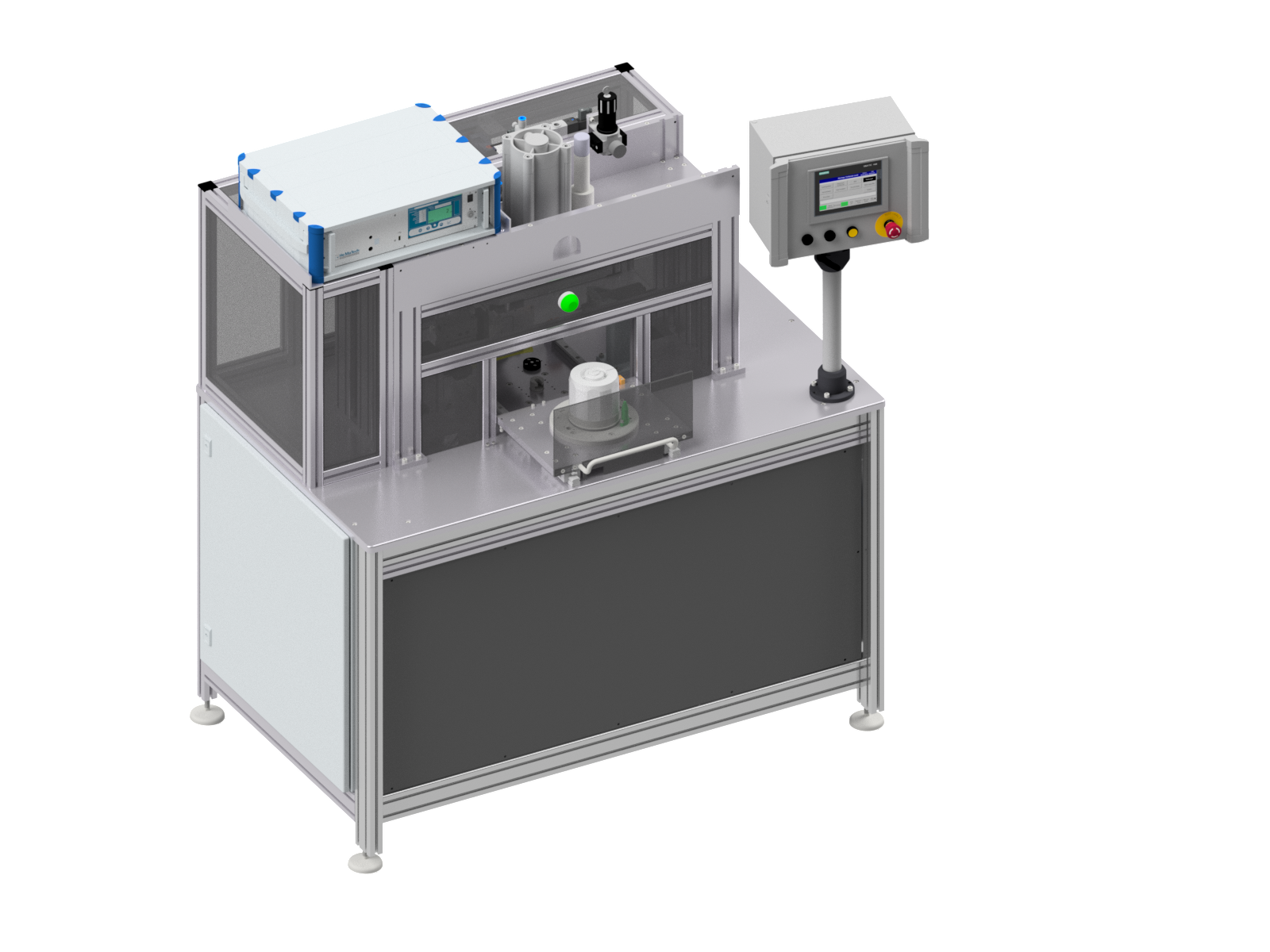

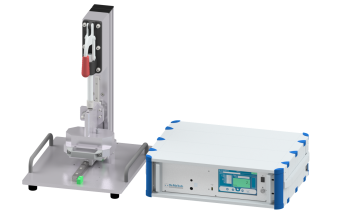

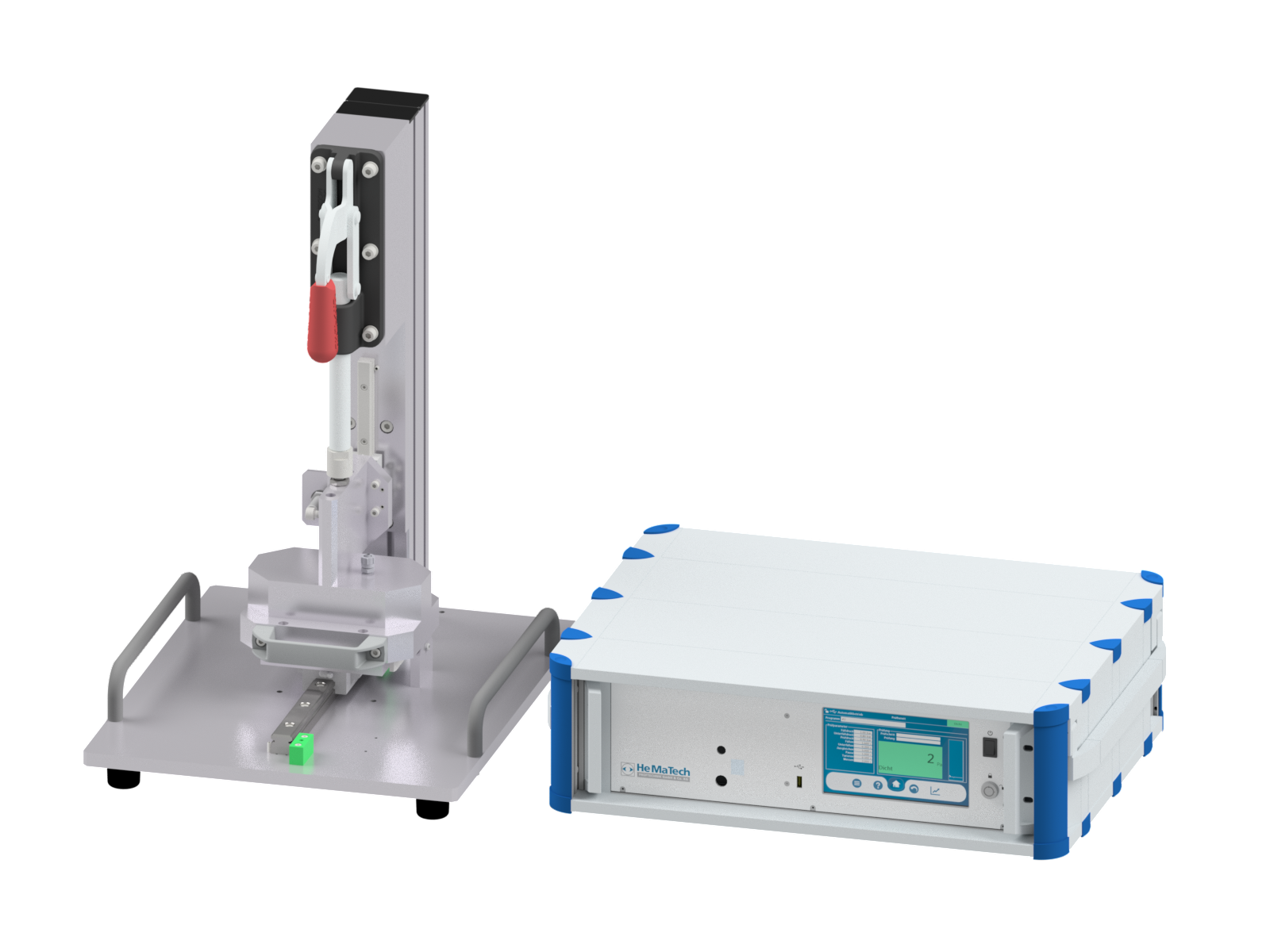

Leakage test device for pool testers (cover test)
Type:
Device with manual loading and unloading, component on a movable workpiece holder for easier insertion by the worker, automatic testing with HeMaTech leak testing device.
Task:
- Leak test of the component using cover test
- Volume detection in case a defective component is filled during filling
- Leak tester HeMaTech 3925-0070
- Automatic start of the test after lowering the tensioner
Formats:
1 format
Cycle time:
20 seconds
Fully and semi-automated systems
Leak testing facilities can be distinguished between fully and semi-automated systems.
Fully automated leak testing systems
Fully automated leak testing systems automatically feed the fixture with units under test and perform the test independently. The units under test are taken from a transport system using a robot or a gantry and supplied to the leak testing system. The results are stored and can be evaluated at any time. PLC, parameters and failure recording is adapted individually. So leak testing systems can be integrated in the production process and used directly in the assembling line.
Semi-automated leak testing systems
Semi-automated leak testing systems allow manual loading and unloading of the fixture. Even the tightening tools are operated by hand. Further manual operations are possible if requested. Particularly for lab applications or small numbers semi-automated systems allow considearble flexibility in adpation to different parts under test. Especially small series of parts or single parts can be submitted to a leak test.
Leak testing systems in serial production
In serial production there are specific requirements to a leak testing system like high accuracy and reliability, short testing cycles but as well careful handling of the parts and good economic performance. in automated leak testing of serial parts especially the differential pressure method using compressed air has proven its pratical applicability as it fulfills all teh requirements above.
We at HeMaTech relay on the highly accurate and economical leak testers 3925-0060 or 65eco. Furtherrmore the flow testers 3925-0160 and the volume testers 3925-0360 can be integrated.
